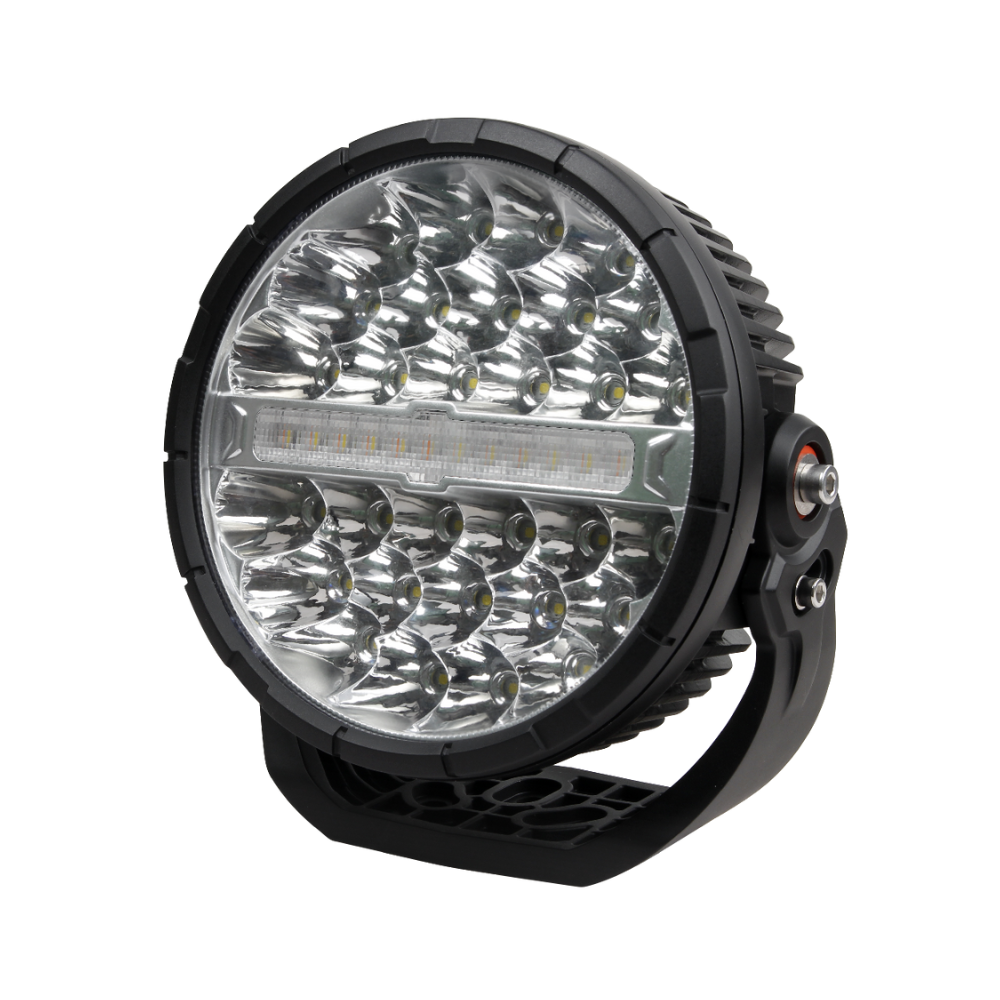

9" Driving Lamp | DRL Lamp | CA 6173

Manufacturer: 247 LIGHTING
SKU: CA 6173
Availability: In stock
If you are looking for a Driving Lamp to pack a punch then these lights are a KNOCKOUT!!!
Proven to deliver superior illumination, with a sleek yet simple design that will enhance the front of any vehicle. Added functionality includes DRL, Indicator, and Front Position Lamp. In addition, these LED Driving Lamps stand out for their high performance and intense light output from an array of high-quality LEDs. The solid Die Cast Aluminium Housing, toughened Polycarbonate Lens, and rigorous testing ensure resistance to the elements.

  • 12800 Lumens
  • 12-24 Volts
  • 162W
  • Driving Lamp: 30 LEDs, Front Direction Indicator: 12 LEDs, Front Position/ DRL: 12 LEDs
  • IP69 ; IPX9K
  • ECE REG 10/ REG 148 Approved
  • EMC Approved, CISPR 25 CLASS 3
  • Polycarbonate Lens
  • Die Cast Aluminum Housing
  • Stainless Steel Bracket Mount | M8 ; M10 Bolt
  • 500mm Cable
  • 980m Beam Distance
  • Operating Temperature: -40°C to +65°C
  • Dimensions: 233*109*243mm
  • Nominal Current @ 12V: Work Lamp: 9.2A, Front Position: 0.06A, Driving Lamp: 0.46A, Direction Indicator: 0.26A
  • Nominal Current @ 24V: Work Lamp: 4.5A, Front Position: 0.035A, Driving Lamp: 0.22A, Direction Indicator: 0.13A
