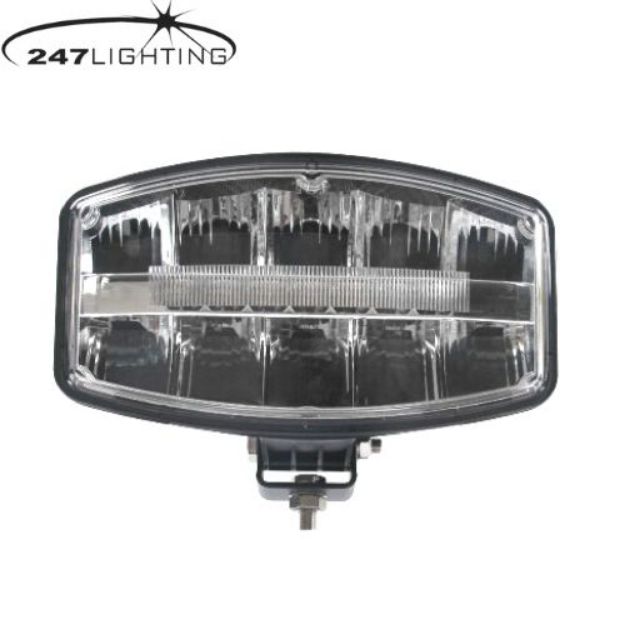

LED Driving & Position Lamp | CA 6169

SKU: CA 6169

Availability: In stock

This lamp is manufactured and designed using the latest cutting-edge technology. It has an exclusive style that transforms the look of any vehicle giving it a distinctive presence on the road. The LED Driving & Position Lamp stands out for its high performance and intense light output producing 2800 lumens, from an array of low wattage LEDS - with an effective draw of only 31.5W. With solid Die Cast Aluminium Housing, toughened Polycarbonate Lens, and rigorous testing to achieve a high rating of IP69K & EMC CISPR25 CLASS 5 - the CA 6169 ensures resistance to the elements

• 2800 Lumens + 196 Lumens

• Effective Draw 31.5W

• DRV: 12 LEDs x 4W (48W) + POS: 9 x 0.5W (4.5W)
• Nominal Current @ 12V: DRV: 2.51A, POS: 0.125A
• Nominal Current @ 24V: DRV: 1.25A, POS: 0.0625A
• Rated IP66 / IP6K9K
• Housing: Graphene
• Lens: Anti-UV PC with hardening process
• Stainless Steel Mount, M8 / M10 Bolt
• Built in Plug-In Connector

• Illumination Angle: (H) 22° @1000CD, (V) 5° @1000CD
• 275m Light Distance
• Driving & Position Light Beam
• Cable Length: 400mm
• 244.4mm (L) x 138.4mm (W) x 110mm (H)
• ECE Reg 112/ Reg 149 (Driving Lamp) / R148 (Position Lamp)
• ECE Approved REG 10
• EMC CISPR25 CLASS 5
• Operating Temp: -40ºC to +50ºC
