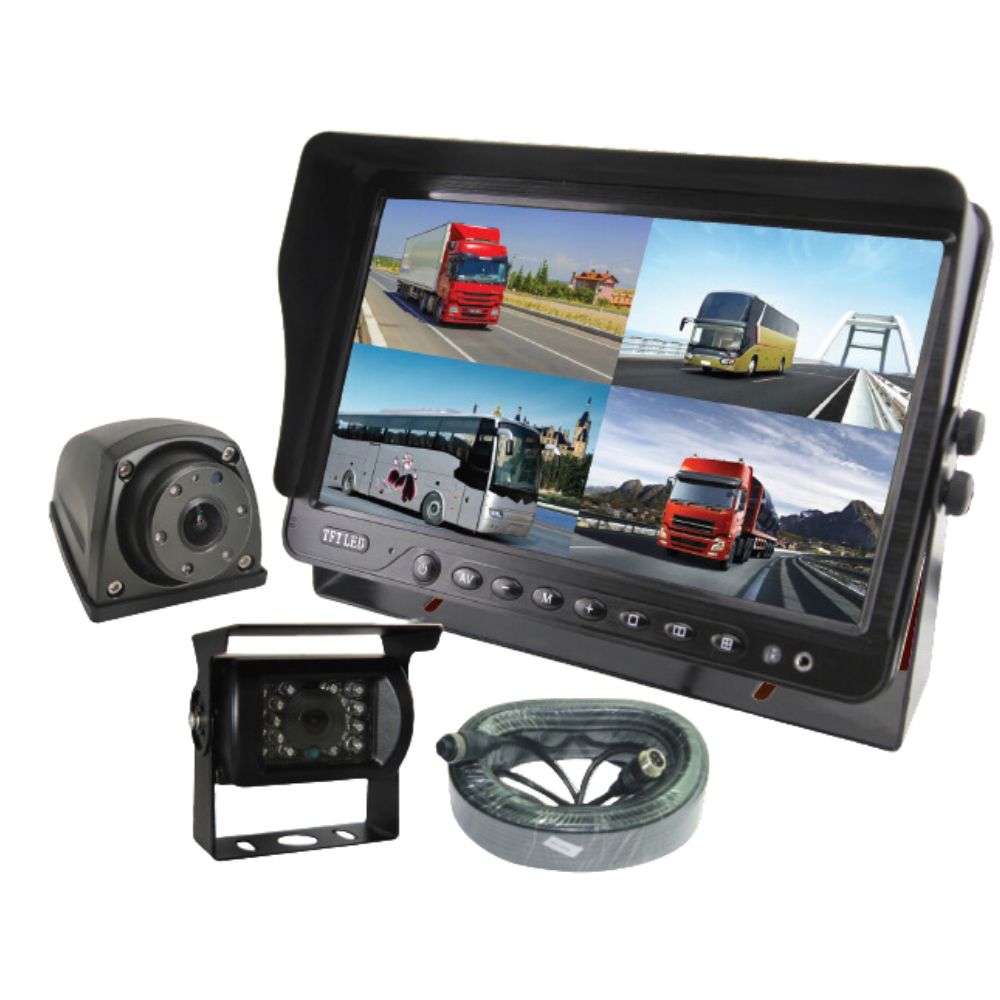

7" AI Wired Camera Kit | 2 Cameras

Monitor

• 12-24 Volts
• 7" Quad Split Digital AHD Monitor
• NTSC/PAL
• 1024 RGB(H)*800(V) DOT
• DVR Function
• 4 Camera Input
• No Audio Function
• 15m Blind Area Alarm Distance
• 18 Pin Cable Connection
• 1.5m Cable
• U Bracket Mount
• CE / EMC Approved
• Reg 10
• IP 54
• SD Card Supported (Not Included)
• 177(W)mm x 122(H)mm x 76(D)mm

AHD Colour Camera

• 12 Volts
• 10m Night Vision
• 4 Pin Aviation Connection
• 2.8mm Lens
• 18 Infrared LED's
• Horizontal Resolution AHD 720P
• 120° View Angle
• 1280*720px
• 650mm Cable
• Metal Bracket / Stainless Steel Mount
• CE / EMC Approved
• Reg 10
• IP69K
• No Audio
• Operating Temperature -20°C to +70°C
• 77(W)mm x 76(H)mm x 69(D)mm

AHD Colour Side Camera

• 12 Volts
• 8m Night Vision
• 4 Pin Aviation Connection
• 5 Infrared LED's
• Horizontal Resolution AHD 720P
• 135° View Angle
• 1280*720px
• 650mm Cable
• Metal Bracket / Stainless Steel Mount
• CE / EMC Approved
• Reg 10
• IP69K
• No Audio
• Operating Temperature -20°C to +70°C
• 53(W)mm x 39(H)mm x 73(D)mm

Kit Includes

• AI Monitor
• AHD Camera - CA 9823
• AHD Side Camera - CA 9824
• Cable (20m & 15m)
• U Bracket
• Remote Control
• Power Cable & Sun Visor

**The SD card should be no more than 128GB**
